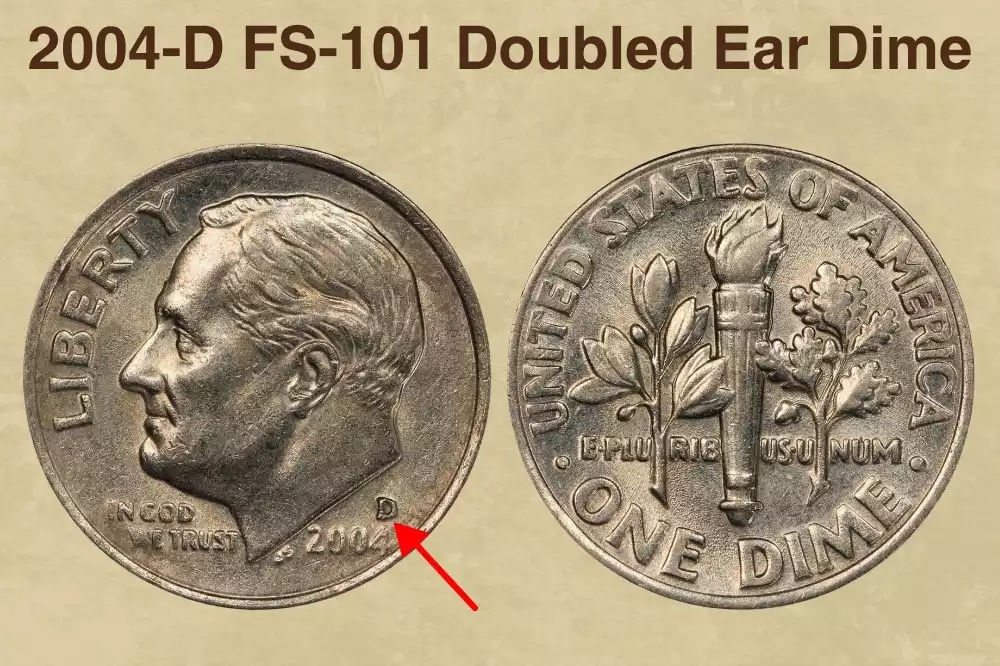

The 2004-D Doubled Ear is a Class I hub doubling error that occurred when the working die received two impressions from the hub at slightly different rotational positions. The resulting misalignment created a secondary raised area on Roosevelt's ear that is clearly visible under a 10× loupe and occasionally with the naked eye on well-struck examples. PCGS officially lists this variety as FS-101 in its variety registry.

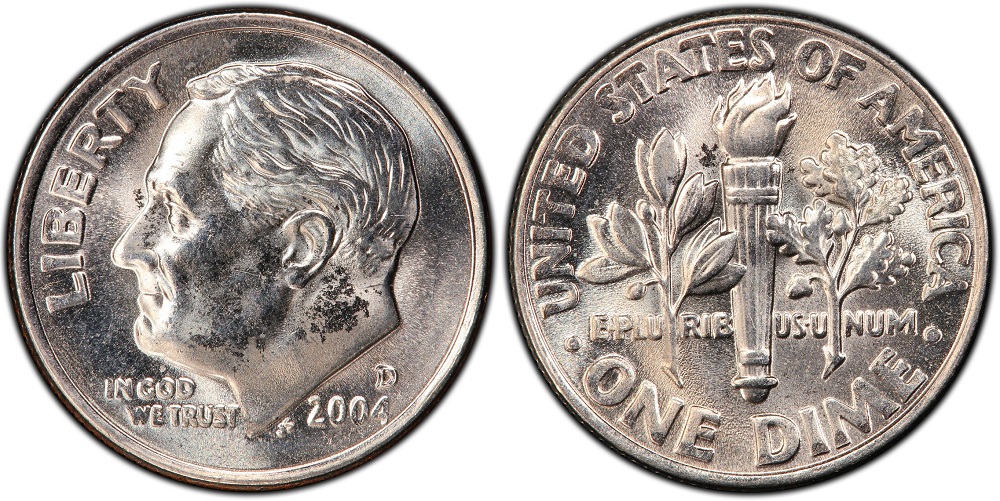

Visually, the doubling manifests as a thickened or split upper rim of the ear, sometimes described as a "cauliflower ear." The secondary impression is most pronounced at the upper-left edge of the ear, where the die shift created the greatest offset. The doubling does not extend significantly to adjacent hair details or the jawline, which helps distinguish it from a mere die deterioration doubling of lesser value.
Collector demand is strong because this is a named, PCGS-catalogued variety that can be attributed with certainty, making it financeable through third-party grading. Examples in circulated condition typically bring $50–$100, while MS65 and above specimens command $150–$275. The variety also exists with the Full Bands designation (FS-101 FB, PCGS #395112), which carries an additional premium at gem grades.

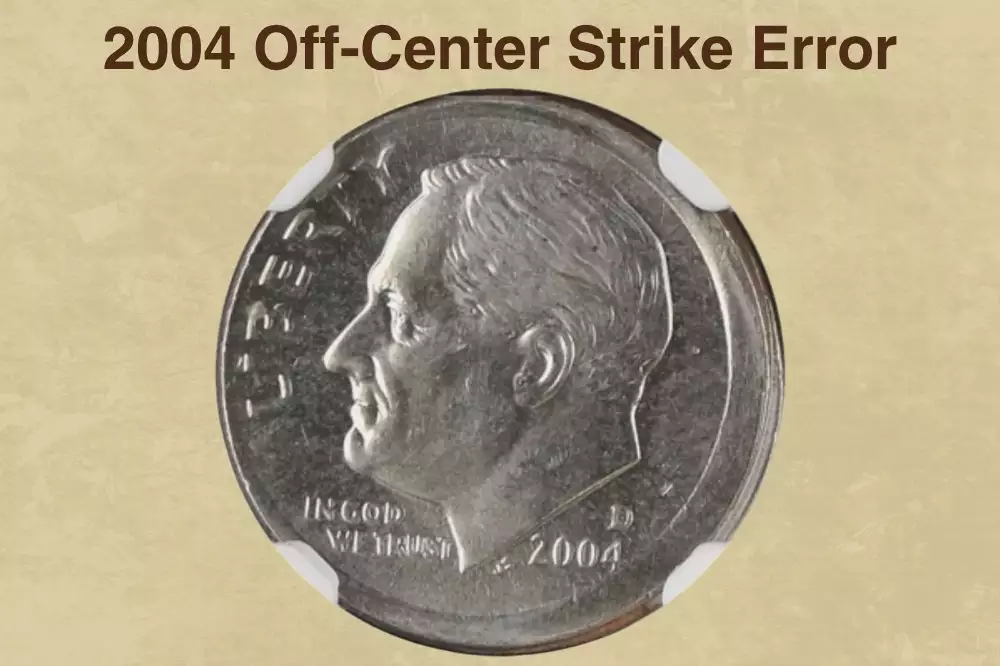

An off-center strike occurs when the planchet is not properly centered beneath the dies at the moment of striking. Instead of the design landing symmetrically on the coin, it is displaced toward one edge, leaving a blank crescent of metal on the opposite side. The degree of off-center percentage determines both the visual drama and the market value — minor shifts of 5–10% have modest premiums, while dramatic examples at 40–50% off-center are highly sought after by error collectors.
To identify this error, look for the design visibly crowded toward one edge while the opposite side shows a plain, unstruck area of the planchet. On dimes, even a 20–30% off-center strike is unmistakable under normal lighting. The date must still be readable on a desirable example — coins where the date is fully off the flan are generally considered less collectible despite their dramatic appearance.
A 2004-P dime graded MS64 with a 45% off-center strike sold for $1,230 at Heritage Auctions in 2008, making this the highest confirmed auction result for any 2004 dime error coin. Less dramatic examples from both the P and D mints bring $100–$400 depending on the degree of shift and overall condition. These coins are certified by PCGS and NGC as "Off-Center" with the percentage noted in the grade description.

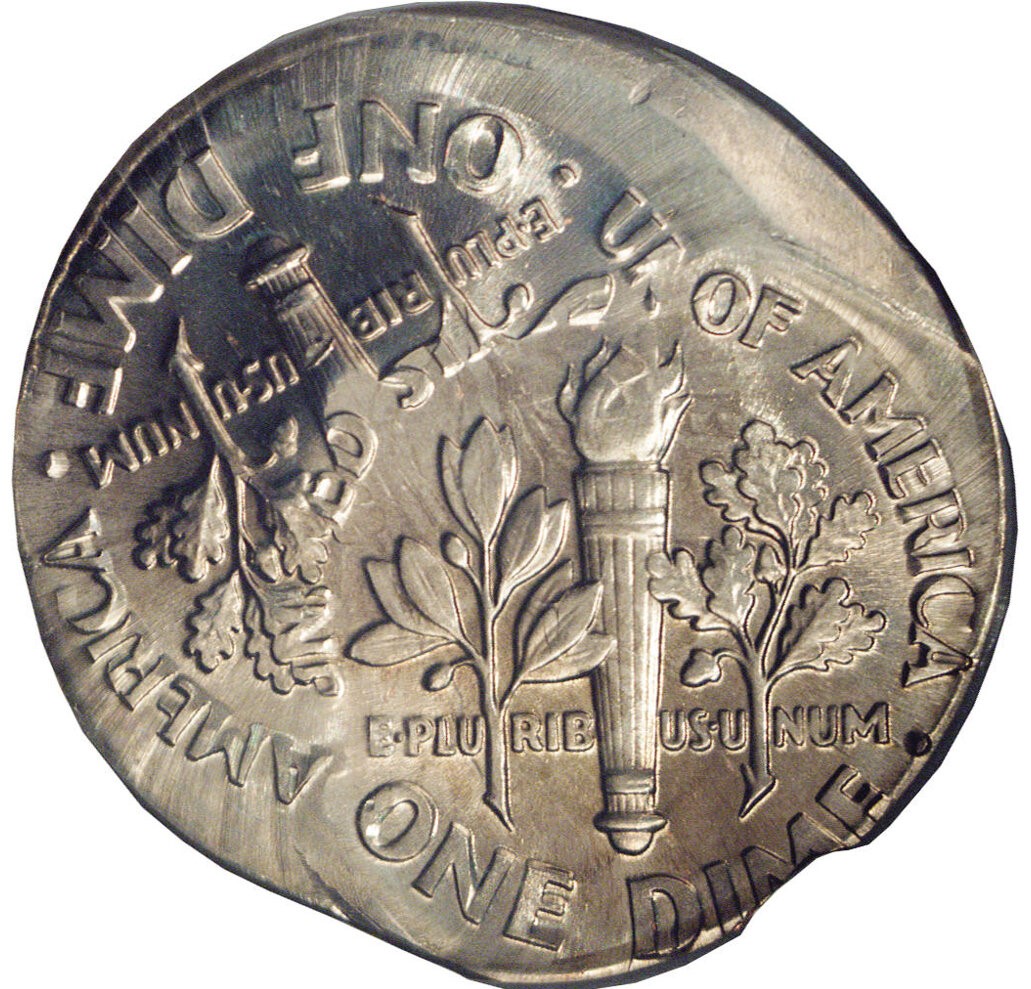

A double strike error happens when a coin that has already been fully struck by the dies is not ejected from the collar and receives a second blow from the hammer die. Unlike the hub doubling seen in the Doubled Ear variety — which is a die defect — a double strike is a planchet-level error that affects the entire coin at once. The two impressions are typically offset from each other at different angles, creating a visually dramatic ghosted or "layered" appearance across both obverse and reverse.
Visually, the Roosevelt portrait will appear twice — once clearly struck, and once as a secondary overlapping impression at a different rotational angle. The date, legends, and torch reverse will also show double imagery. Unlike mechanical doubling or die deterioration doubling (which appear flat and shelf-like), a genuine double strike will show full, raised relief in both impressions because the planchet was struck with full pressure twice.
A 2004-P Roosevelt dime graded MS65 with a dramatic double strike sold for over $1,000 at Great Collections in 2011, one of the strongest results in the series. Lower-grade double strike examples from P or D mint still bring strong prices in the $200–$500 range because these errors are genuinely scarce — the mint's automated ejection systems prevent most repeats. Certification by PCGS or NGC as "Double Strike" is recommended before sale.

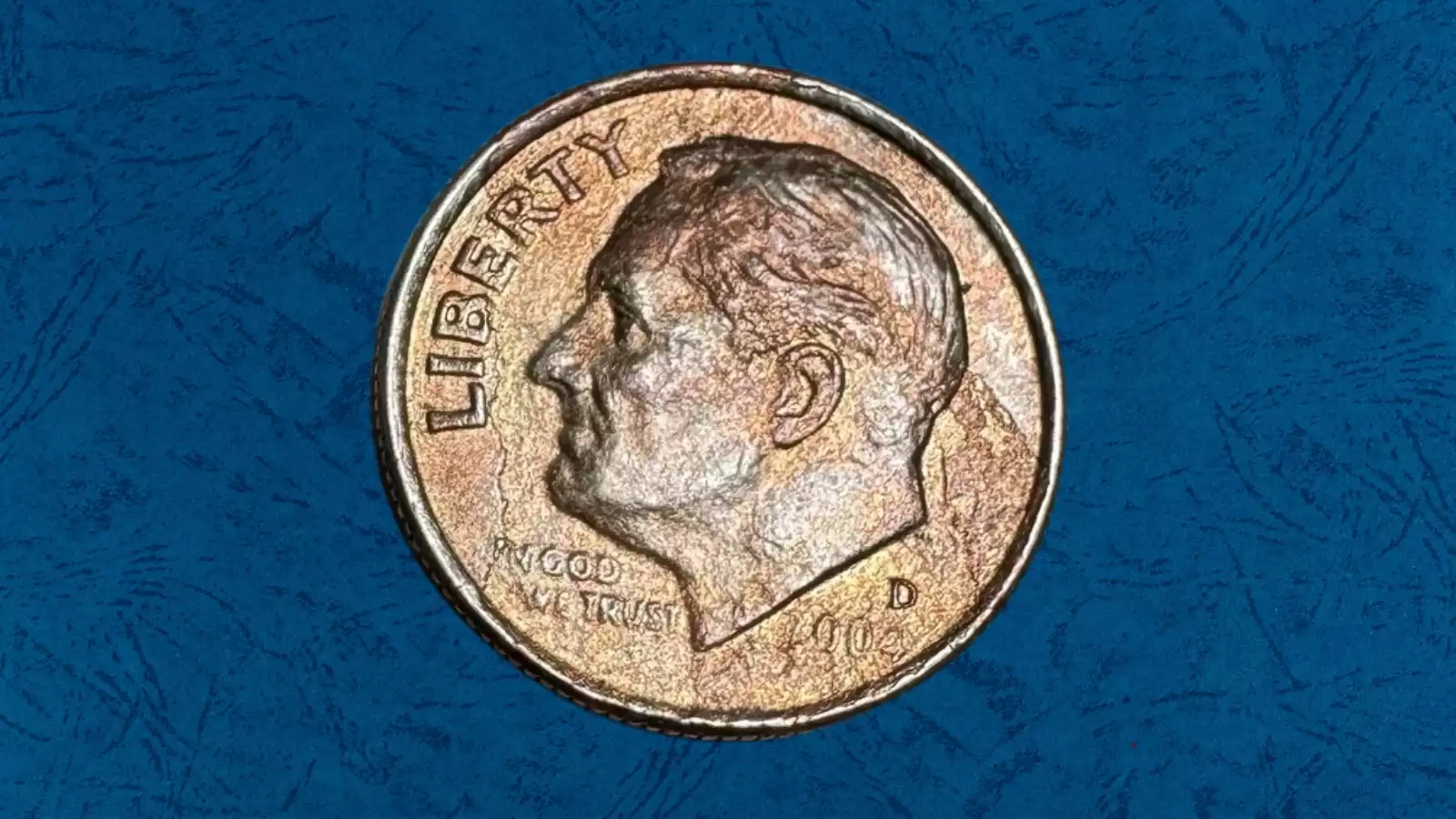

The missing clad layer error occurs when the cupronickel outer layer (the 75% copper, 25% nickel bonded shell) is absent from one or both faces of the coin before striking. Modern Roosevelt dimes are struck on copper-nickel clad planchets — a sandwich of pure copper core with bonded nickel-clad faces. If the bonding process fails for one face, the coin is struck directly on the copper core on that side, creating a coin that looks entirely different on its two faces: one silver-colored (normal clad), one copper-colored (exposed core).
These errors are identified by color contrast: one side of the coin will appear the normal silver-nickel color while the other will show a warm copper-brown or reddish hue. The coin will also be slightly lighter than a normal dime because the missing clad layer reduces total metal content. A loupe inspection of the edge will reveal the missing layer — the edge will appear copper-colored on the affected side and silvery on the normal side.
Missing clad layer errors are among the rarest genuine planchet errors in the Roosevelt dime series because the clad bonding process is highly automated and quality-controlled. Both obverse and reverse missing-clad examples exist, with obverse examples generally commanding higher prices due to greater collector demand. Values range from $150 to $610 or more depending on which side is missing, condition, and whether the coin has been graded by a major service.

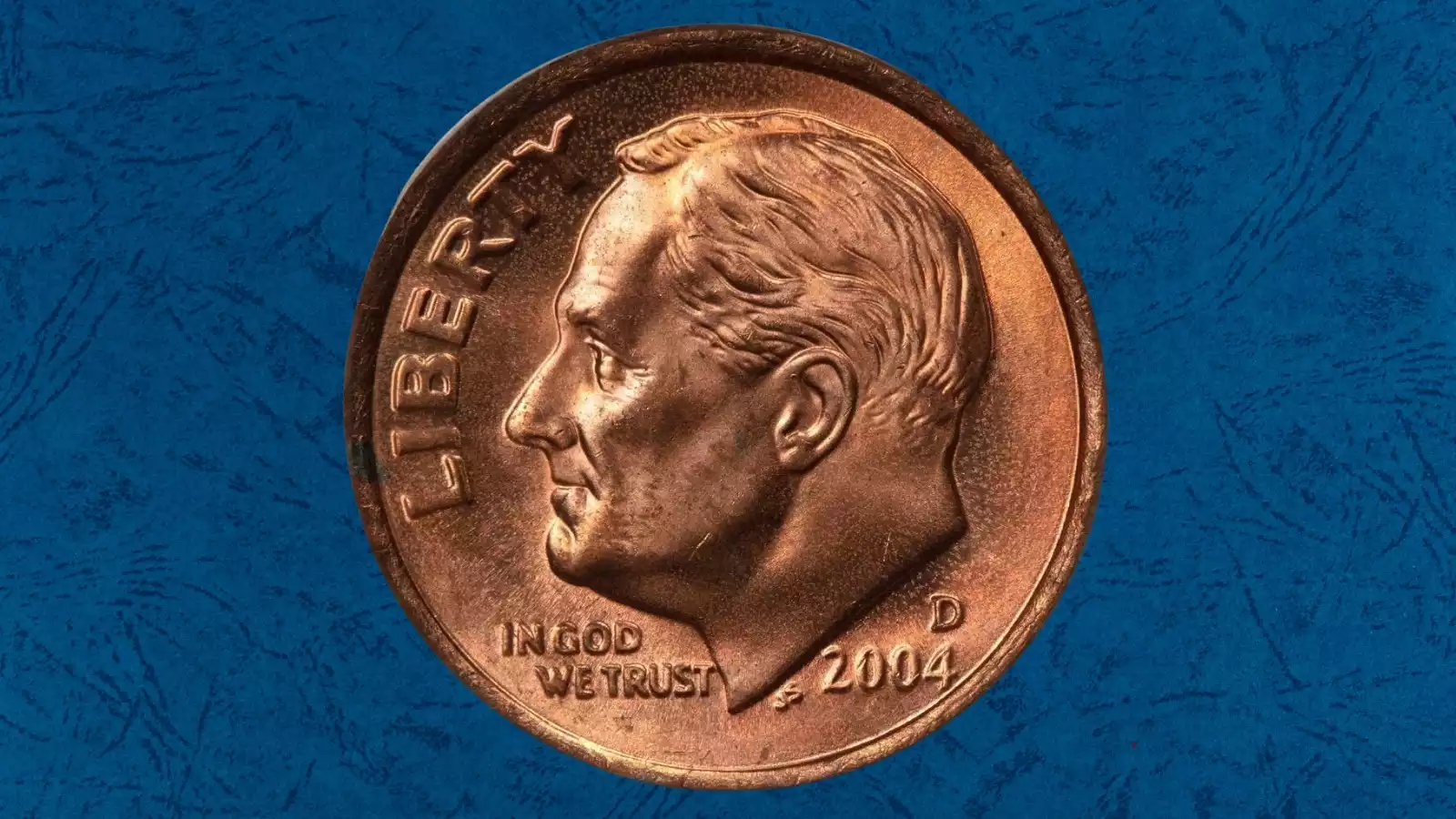

Before striking, coin planchets are annealed — heated to soften the metal and then cooled — to make them workable and receptive to the die impression. If this annealing process is improperly applied (wrong temperature, wrong duration, or cooling failures), the resulting planchet surface can take on unusual colorations that survive through the striking process and appear on the finished coin. The 2004-D improperly annealed dime error is especially dramatic because of the stark color contrast against the normally silver appearance of clad dimes.
Visually, an improperly annealed 2004 dime will show uniform, even discoloration across the affected surface — typically a copper-red, burnt orange, or occasionally black (sintered/oxidized) appearance. Crucially, this coloration is evenly distributed across the entire face, unlike post-mint damage (which creates splotchy, irregular staining). The coloration is also inherently bonded to the metal surface rather than sitting on top of it, which can be confirmed under a loupe by the absence of any granular or crusty texture.
A 2004-D dime graded MS64 with an improperly annealed planchet showing a distinctive copper-red color sold for $830 at Heritage Auctions in 2010 — a remarkable result for what most collectors might mistake for a damaged coin. Proper third-party certification by PCGS or NGC is essential for these coins because authentication protects the seller and adds credibility with buyers who might otherwise assume post-mint tampering.
